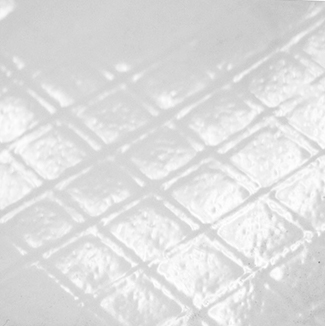

illustration of the layers of dura-skrim

Dura-Skrim Liner Custom Cut – 6′ x 50′ to 100′

Dura-Skrim Liner – 18′ Widths

This is a special order item. Please contact us for pricing. Product drop ships directly from manufacturer. Please allow 1-2 weeks for delivery.

There are two 3 inch wide seams running down this liner at 6′ and 12′.
DURA-SKRIM® R20WW consists of virgin outer layers of white high-strength polyethylene film laminated together with a black layer of molten polyethylene. Both outer layers contain UV inhibitors and thermal stabilizers to assure long outdoor life. The white layers are designed to reduce heat build-up and condensation and to provide excellent dimensional stability. A layer of polyester scrim reinforcement placed between these plies greatly enhances tear resistance and increases service life. DURA-SKRIM’s heavy-duty diamond reinforcement responds to tears immediately by surrounding and stopping the tear. Duraskrim is 20mil thick.

All of our Dura-Skrim liner ships via UPS flat rate within the 48 contiguous United States only. For orders outside the continental US, please contact us for a shipping quote.

SKU: CWHGA033 Categories: Deep Water Culture Systems, Duraskrim Liner

Description
Resources

Description

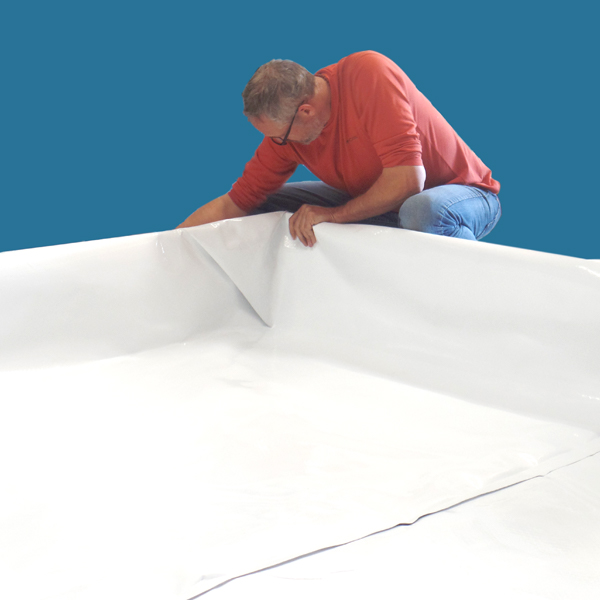

Dura-Skrim Liner – 18′ width

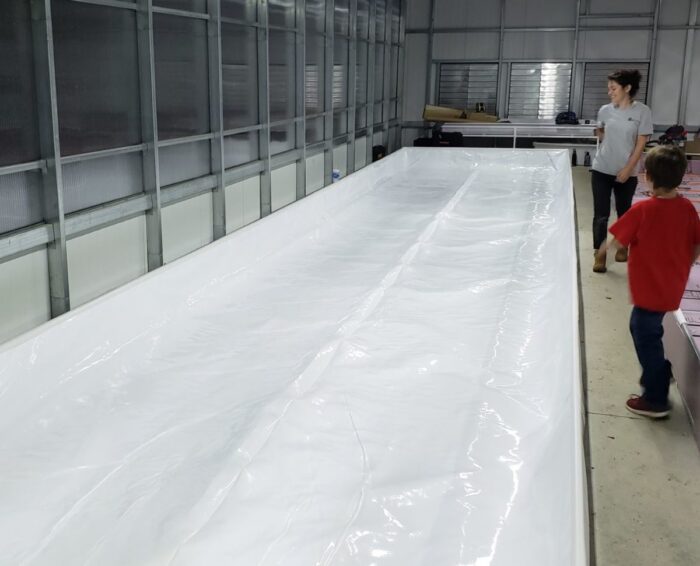

Dura-Skrim is a lightweight and highly tear-resistant polyethylene liner. In aquaponics Dura-Skrim makes a long lasting barrier for deep water culture and media bed installations.

Product Details:

Dura-Skrim Liner has been used with satisfaction in aquaponics for years.
Perfect for both Deep Water Culture (DWC) and Media bed installations.
5 year limited UV warranty. Does not cover normal wear and tear or improper installation.
SHIPPING IS A FLAT RATE WITHIN THE CONTINENTAL UNITED STATES AND WILL BE CALCULATED PER LENGTH IN YOUR CART. (HAWAII, ALASKA AND INTERNATIONAL ORDERS INCUR ADDITIONAL SHIPPING CHARGES, WE WILL CONTACT YOU WITH AMOUNT AND PAYMENT METHOD FOR THESE LOCATIONS.)

Shipping:

All of our Dura-Skrim liner ships via UPS flat rate within the domestic United States only. For orders outside the US, please contact us for a shipping quote.

Seams:

The 12′ and 18′ DuraSkrim pieces have seams. This seam is professionally glued and heat-sealed and will not cause any weakness in your liner.

12′ DuraSkrim -There is a 3-inch wide seam running down the middle of this liner
18′ DuraSkrim -There are two 3 inch wide seams at every 6 feet running down this liner

Sealing Tape (sold separately):

VaporBond Tape (TVB4) 4″ X 210′

White single-sided tape
Heavy duty
Weather-resistant polyethylene backing
Aggressive Rubber Adhesive
Excellent seaming capabilities with an “easy tear” feature to reduce installation time.
TVB4 has a WVTR of 0.18 perms per ASTM D 833.
Typical applications include vapor retarders, covers, and liners.

Butyl Seal Tape (TP2BR)

Black double-sided tape
reinforced aggressive butyl rubber tape used to join panels of polyethylene and polypropylene together by overlapping the edges and applying Butyl Seal in between.
Adheres to concrete walls and footings
Non-hardening
Flexible

(Tape is not 100% guaranteed to be watertight. You will get the results you want if you apply the tape on a flat surface and are careful, diligent, and apply it correctly.)
